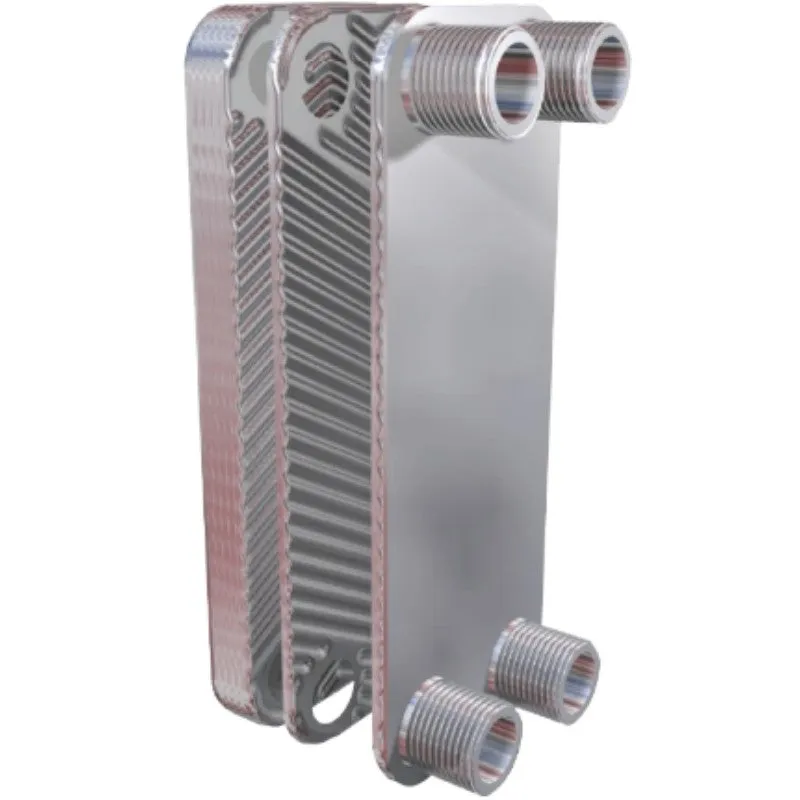

AIC LA14-30 Brazed Plate Heat Exchanger (3/4 MIP Connection)
Product Overview:
Designed for Maximum Performance

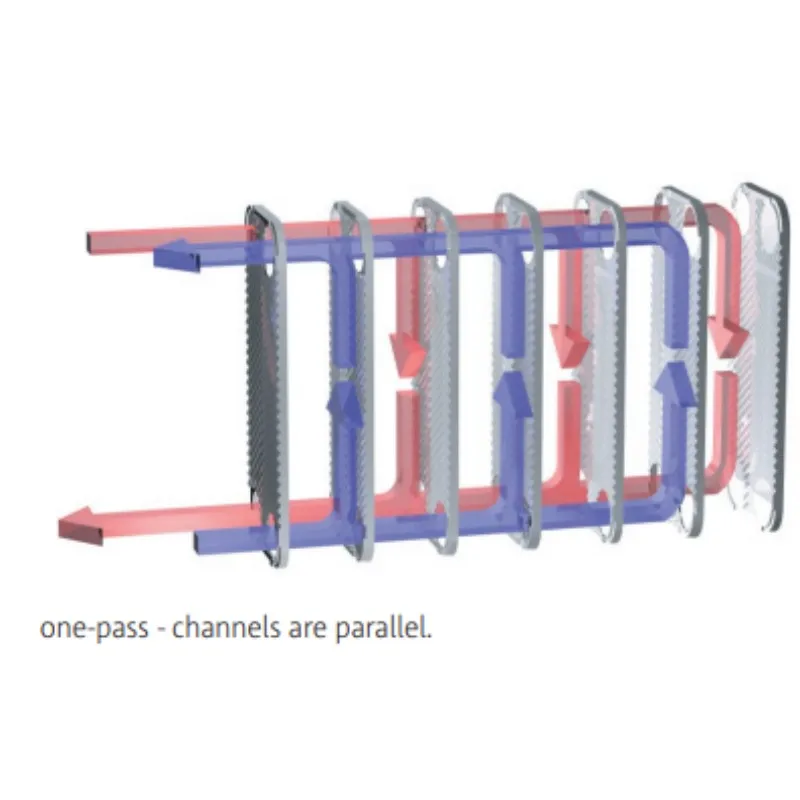

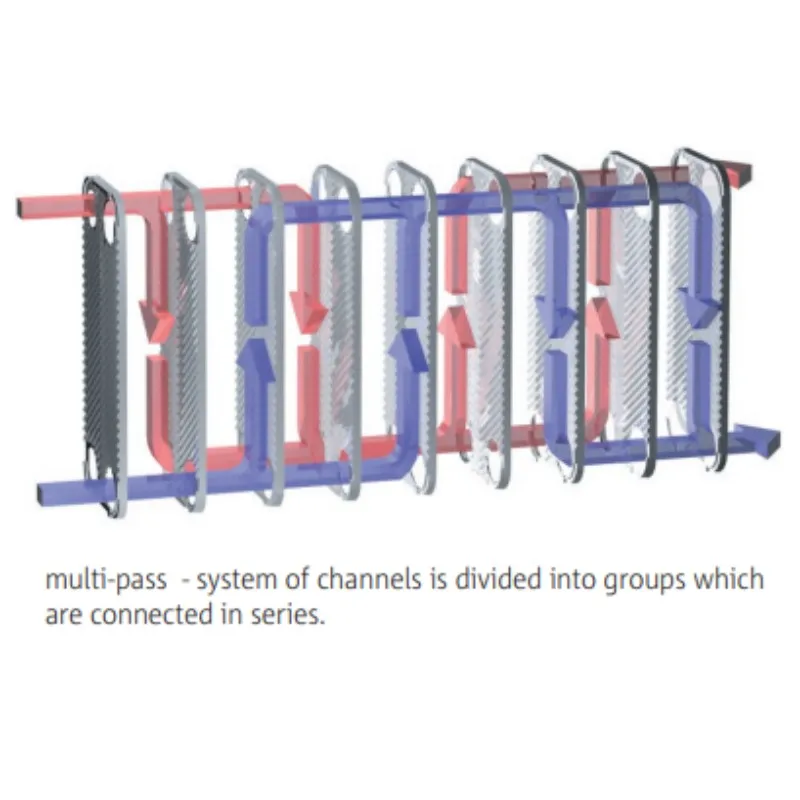

Brazed plate heat exchangers consist of stainless steel plate plates, which have embossed chevron patterns. The plates are turned 180° to each other, causing the plate ridges to intersect, and creating a lattice of intersecting channels. The fluids can flow in counter-current or co-current way.
Special corrugation patterns promote high turbulence flow. Turbulence dramatically improves heat transfer rates and reduces the amount of deposits inside the unit.
Applications:
- Condensers and evaporators in refrigeration systems
- Oil coolers
- Close approach fluid-to-fluid heat transfer
- Industrial process heat recovery
- Solar and geothermal heating
- Hydronic heating and cooling
- District heating and cooling
- Gas cooling
Standard Materials:
- Stainless Steel SS316L Heating Plates
Brazing Materials:
- Copper, Nickel, and Stainless
Maximum Working Pressure
- Up to 650 PSI (4.48 MPa)
Maximum Working Temperature
- Up to 445°F (230°C)
